ESPTransit
Open-source firmware that turns ESP32-P4 touchscreen boards into real-time departure displays for German rail and transit systems.
Features
- Real-time departure data from BVG (Berlin public transit) via ESPTransit-Server
- Station search with autocomplete
- WiFi setup via on-screen keyboard
- Display rotation support (0/90/180/270)
- Desktop simulator for rapid development
Supported Boards
| Board | Size | Resolution | Orientation | Buy |
|---|---|---|---|---|
| JC8012P4A1C | 10" | 800x1280 | Portrait | AliExpress |
| JC4880P443C | 4.3" | 480x800 | Portrait | AliExpress |
| JC1060P470C | 7" | 1024x600 | Landscape | AliExpress |
All boards use an ESP32-P4 MCU with an ESP32-C6 companion chip for WiFi.
Screenshots
Screenshots are from the desktop simulator and are automatically kept up to date via golden screenshot tests.

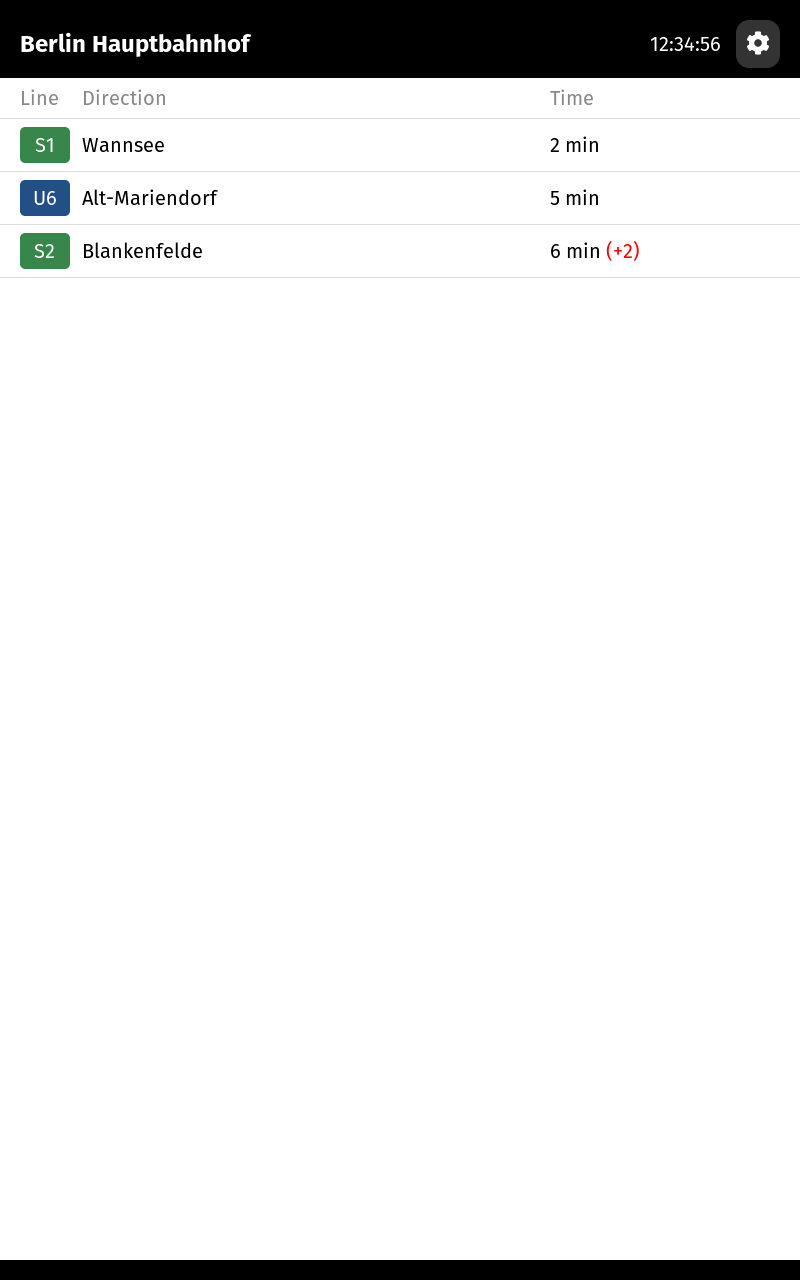

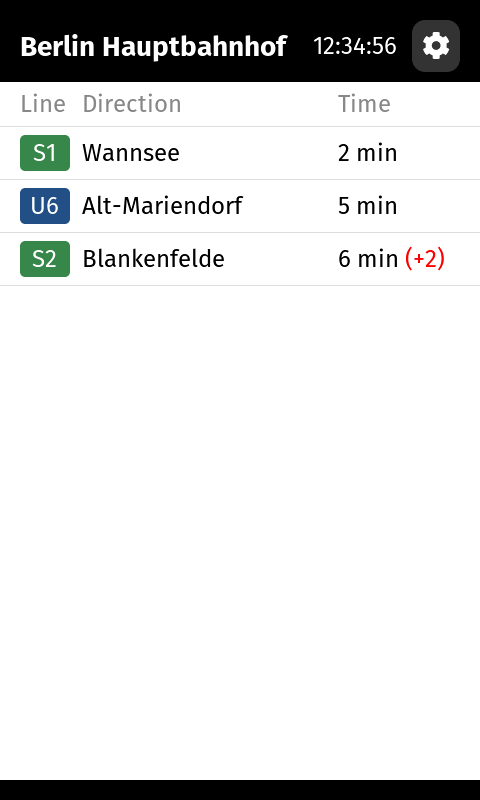

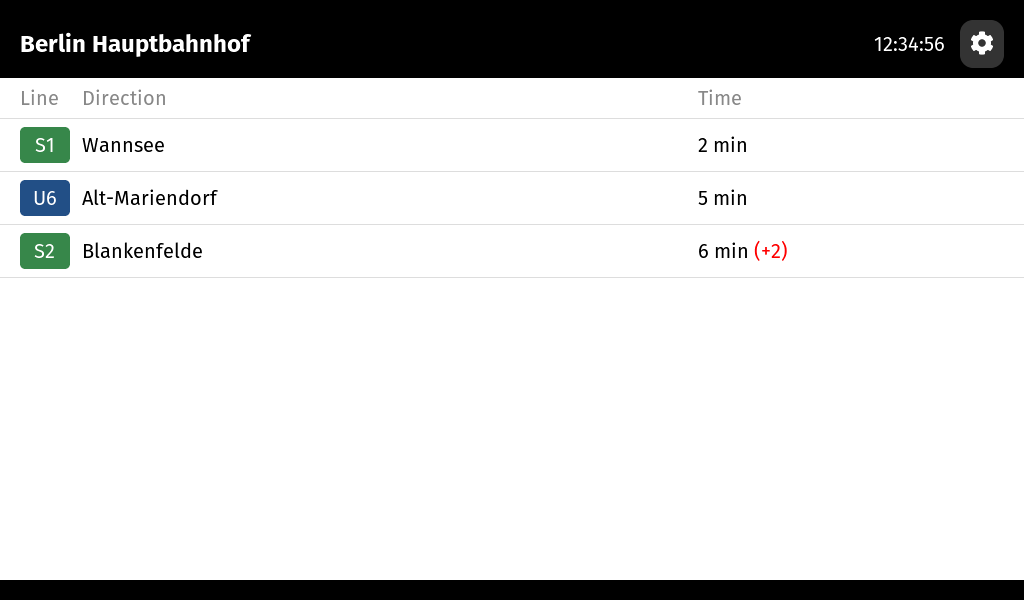

Departures (single station)

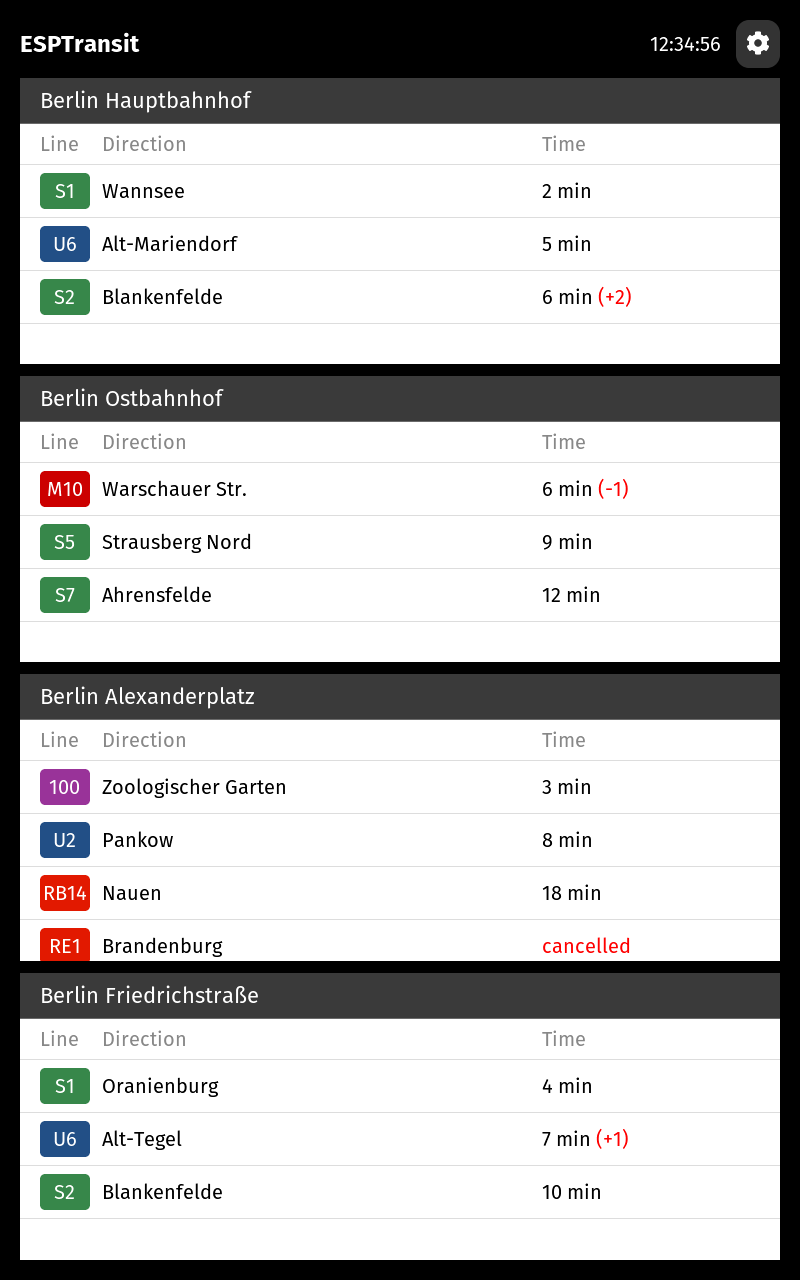

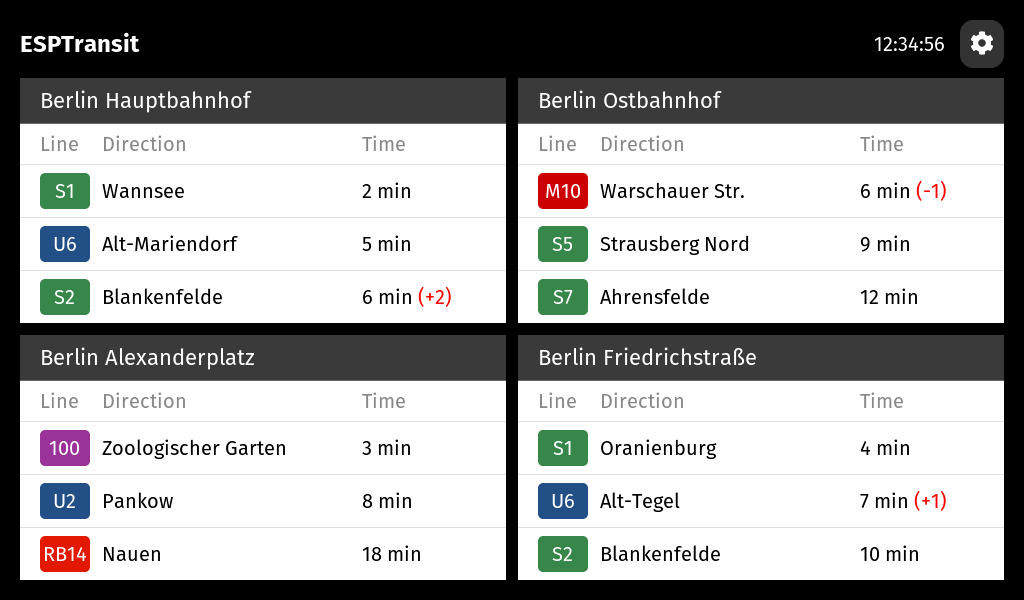

Departures (multi-station split mode)

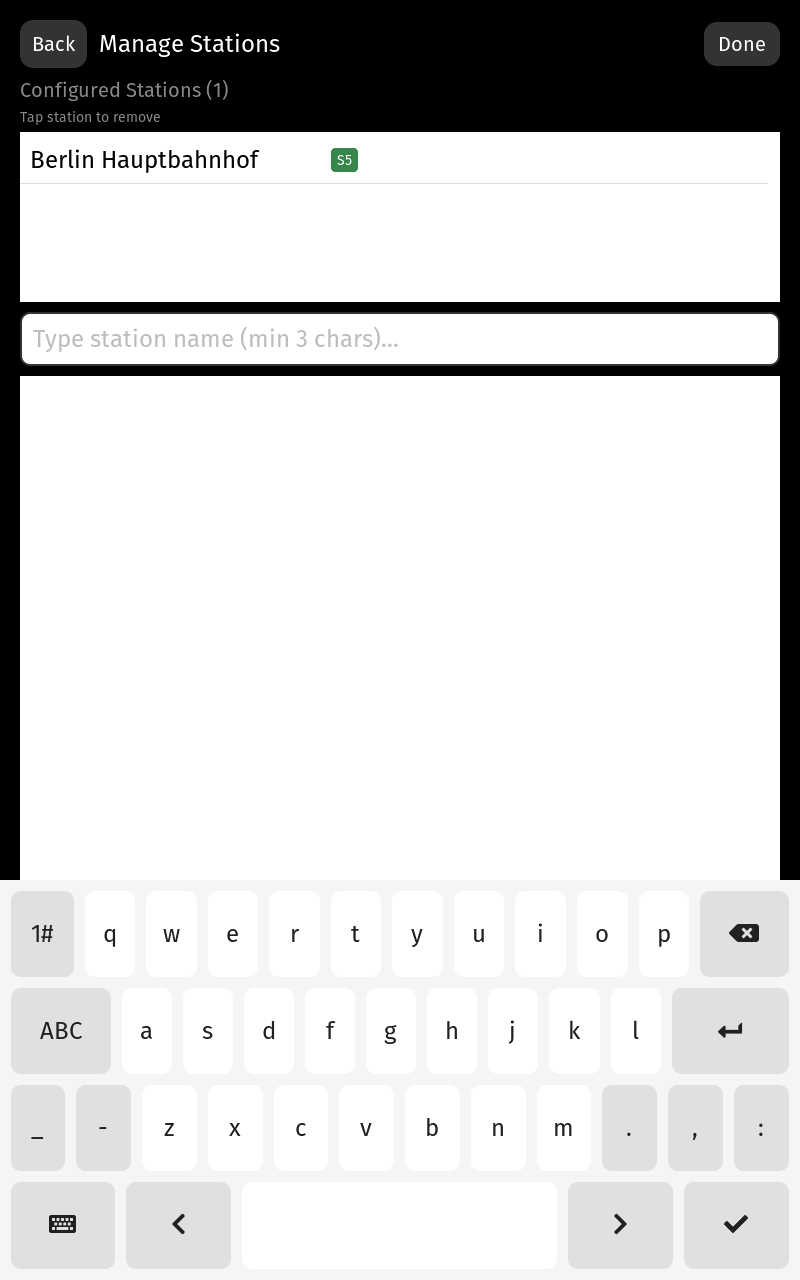

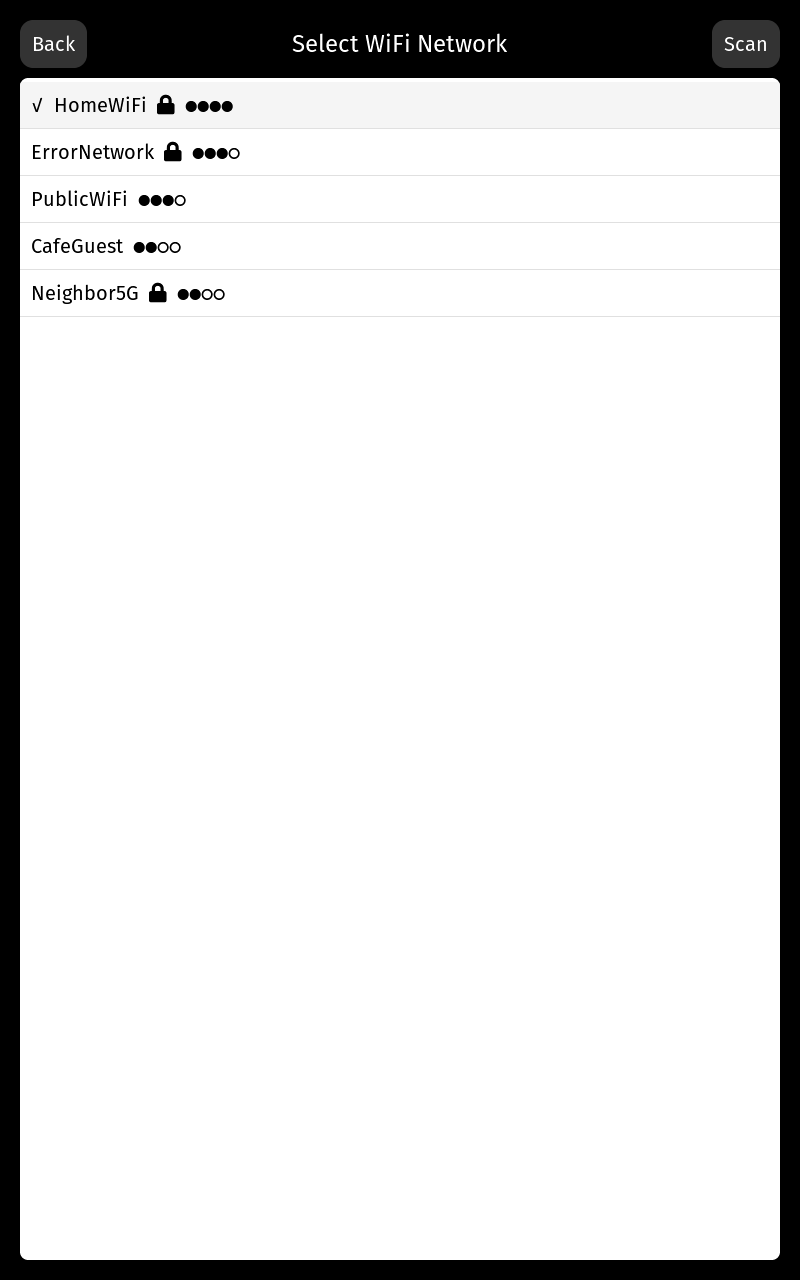

WiFi Setup & Station Search
